Components Of TECCO System G65/3

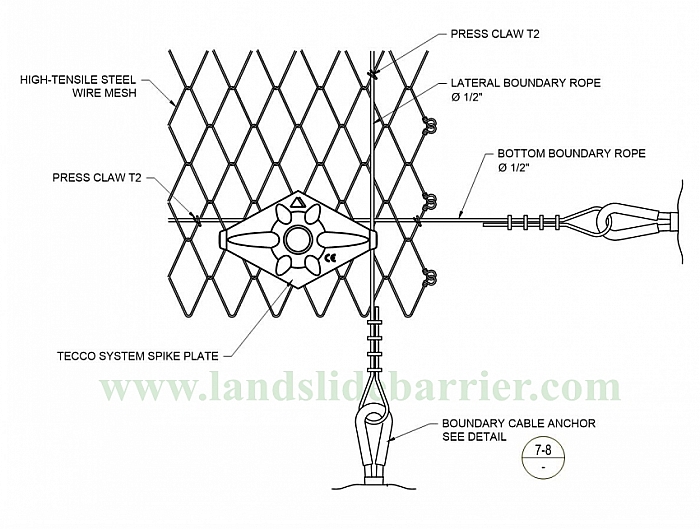

The TECCO System G65/3 consists of TECCO Mesh G65/3, anchors, and anchor bearing plate, border and suture ropes and net connection clips.

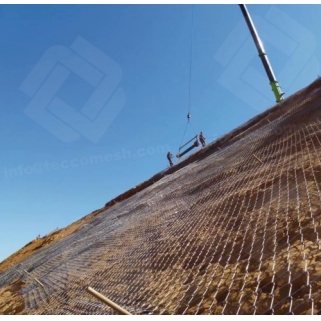

The TECCO System G65/3 is made using 3mm high-tensile steel wire. And with anchors the TECCO Mesh covers over the slope tension and firmly. The TECCO erosion blanket is firmly fixed to slopes and features a finer mesh to ensure that small rocks can be held in place in addition to large boulders.

Standard Specification of TECCO System G65/3

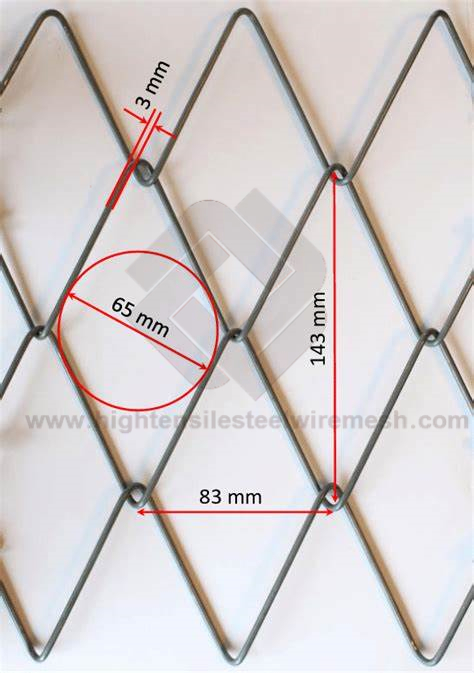

Wire Diameter:3mm

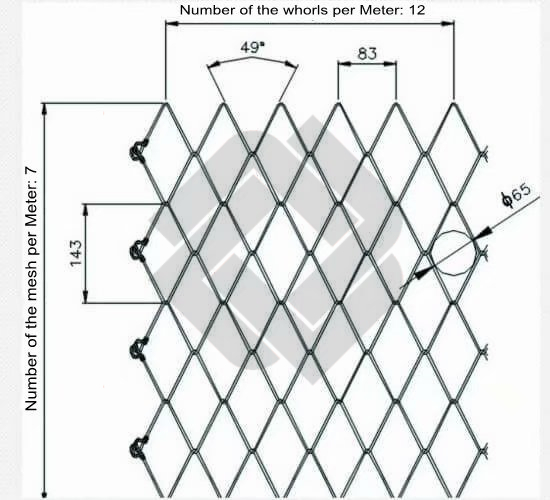

Hole Inscribed circle diameter: 65mm (+/- 5%)    Mesh Size: 83*143mm

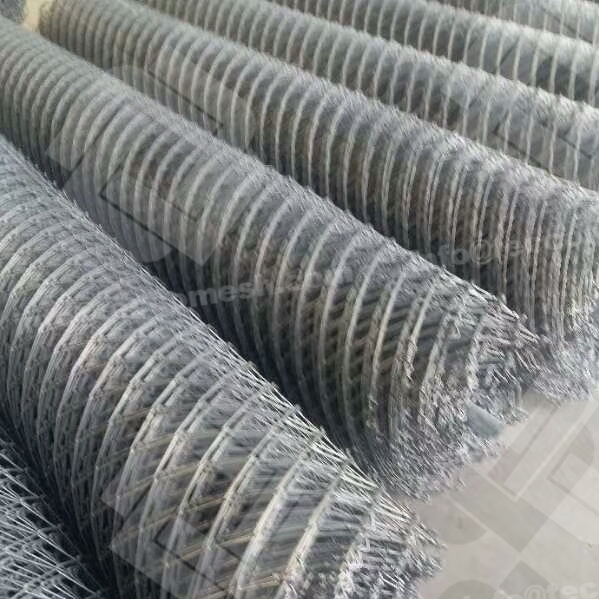

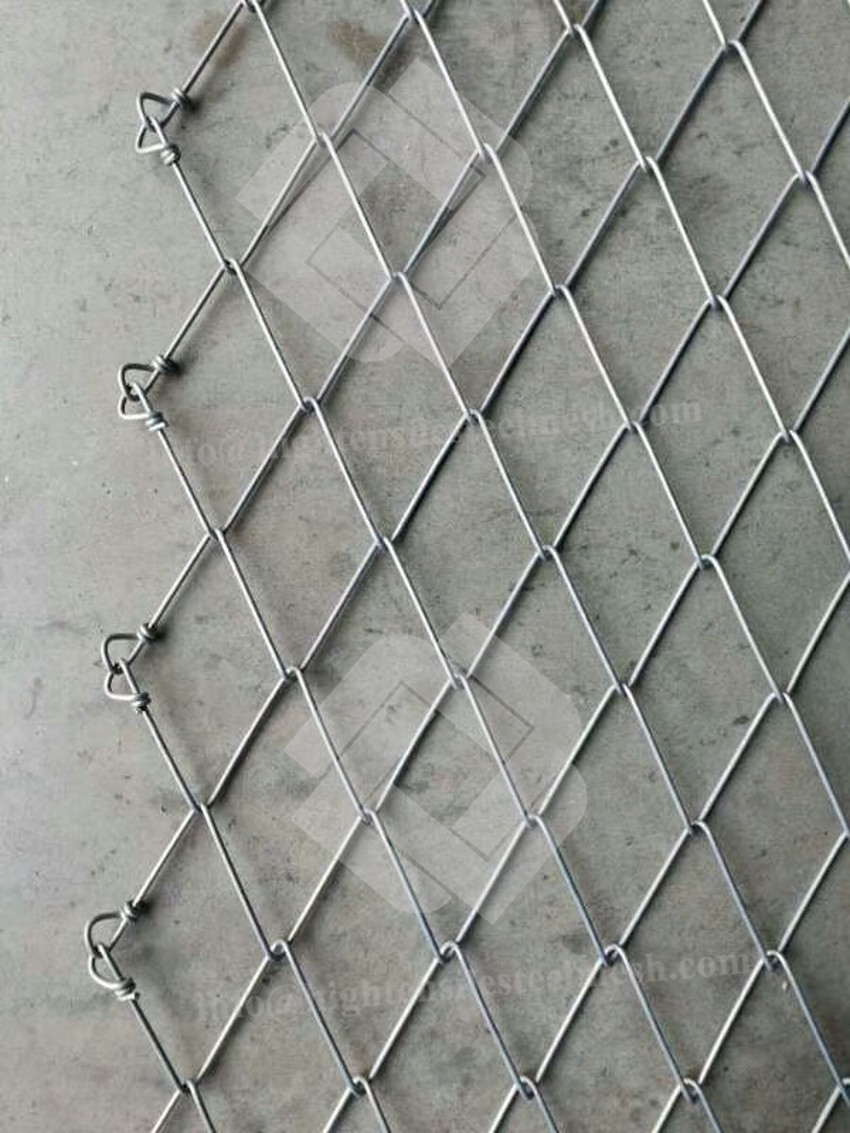

Roll Size: 3.5m x 10m/20m/30m       Mesh Ends Knotted

Standard Specification of TECCO System G65/4
Wire diameter:4mm
Hole Inscribed circle diameter: 65mm (+/- 5%)    Mesh Size: 83*138mm
Roll Size: 3.5m x 10m/20m/30m       Mesh Ends Knotted

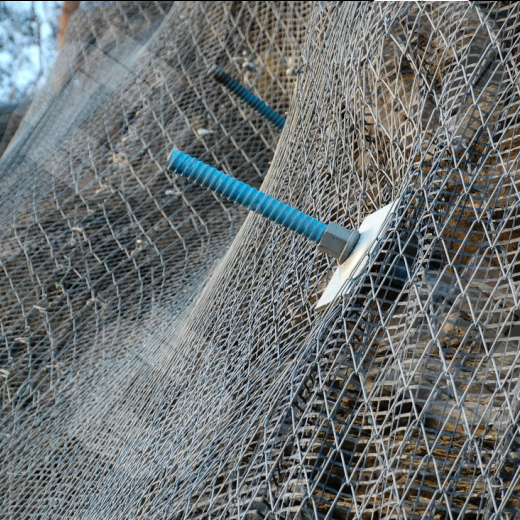

Anchors
Deformed steel bar anchor diameter: 25mm or 28mm
Length:2m -6m

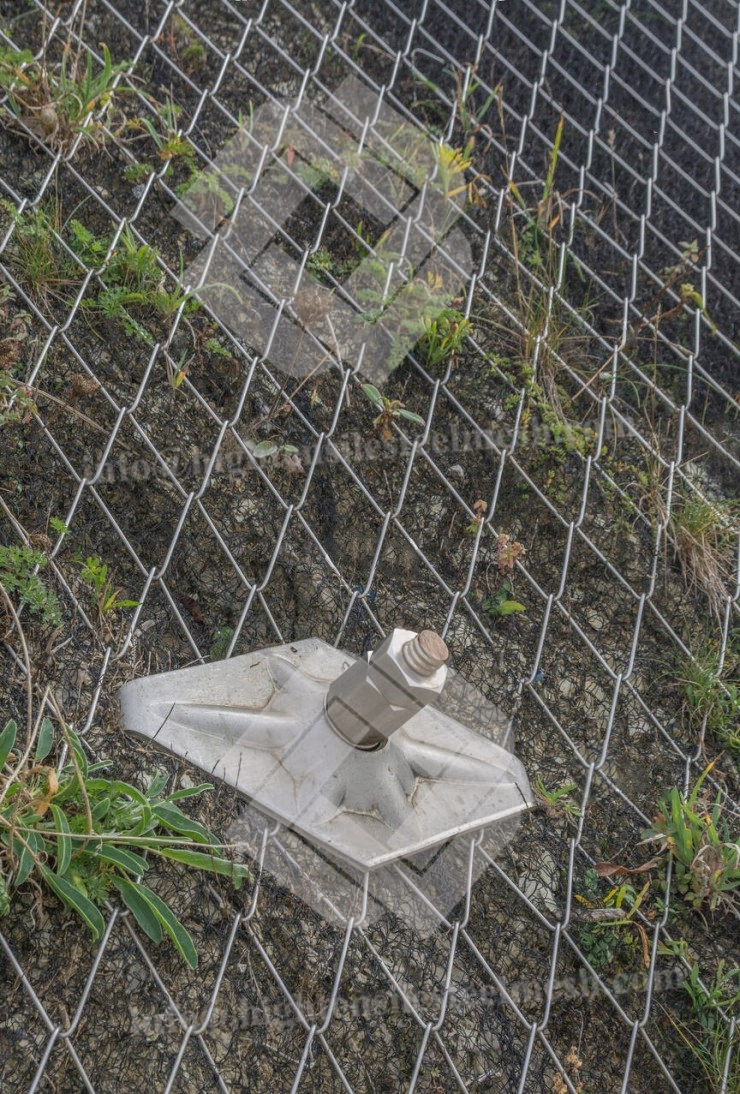

Anchor bearing plate: 320mm x 170/180mm

Wire Rope
Border rope diameter: 12mm or 16mm
Seaming rope diameter: 8mm

Benefits
Compared with other active protection systems:
Only 60%-80% cost compare with the traditional wire rope system.

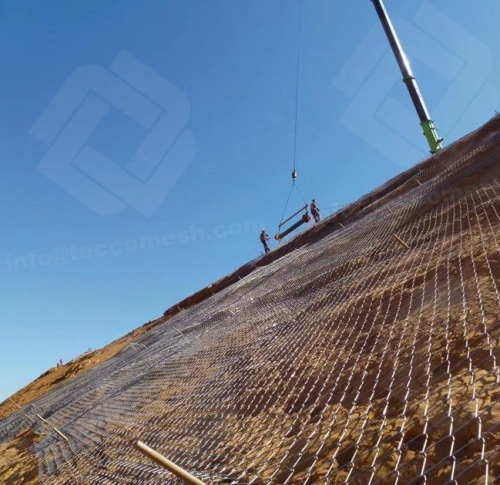

Fast and easy installation
