TECCO System G65/4

Components Of TECCO System G65/4

The TECCO system G65/4 consists of TECCO mesh G65/4, anchors, and anchor bearing plate, border and suture ropes and net connection clips.

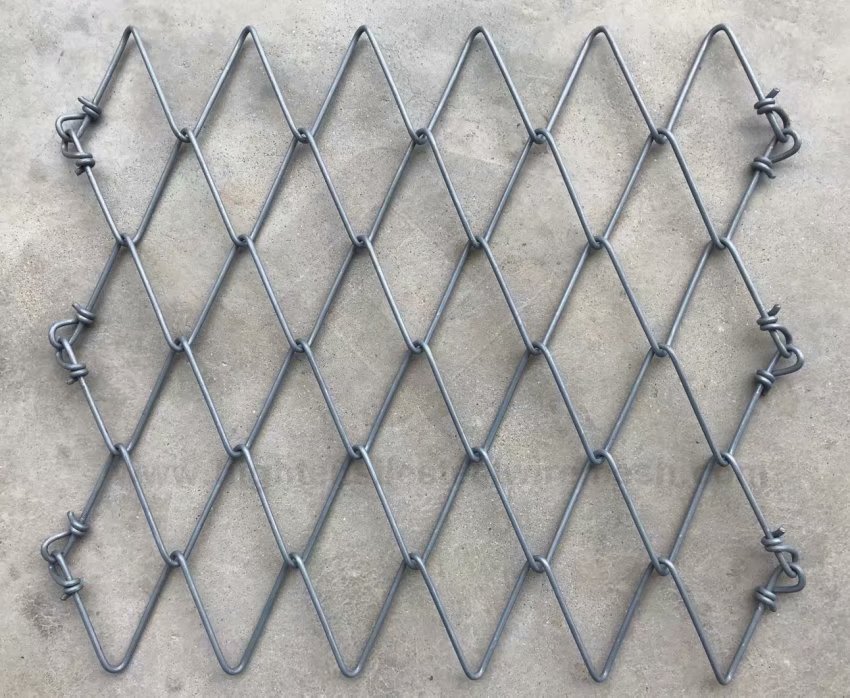

The TECCO Mesh G65/4 is made of high-tensile steel wire 4.0mm ( tensile strength ≥1770Mpa), with the mesh size 83*138mm (+/-0.5mm), with mesh ends knotted, roll wide can be 2.9m-4.5m, roll length 10m-30m.

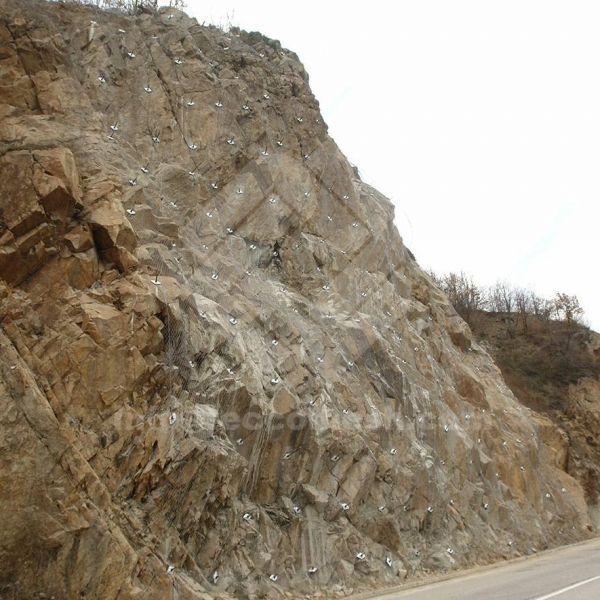

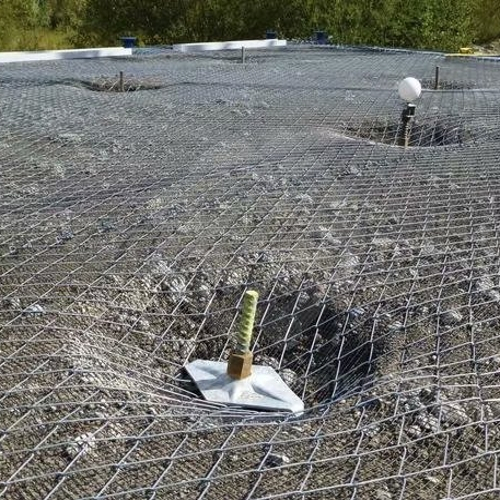

And with anchors the TECCO Mesh G65/4 covers over the slope tension and firmly. The TECCO erosion blanket is firmly fixed to slopes and features a finer mesh to ensure that small rocks can be held in place in addition to large boulders.

Standard Specification of TECCO System G65/4
Wire diameter:3mm
Hole Inscribed circle diameter: 65mm(+/- 5%)    Mesh Size: 83*138mm(+/- 5mm)

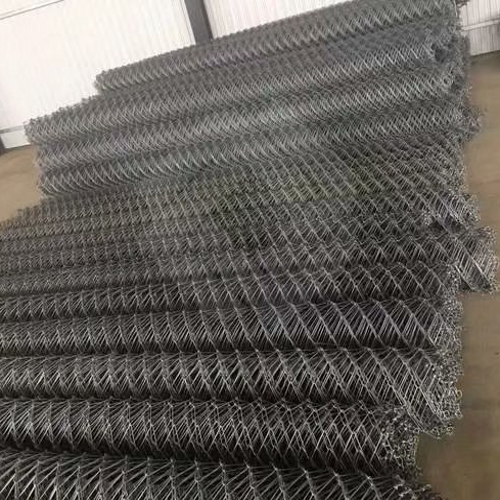

Roll Size: 3.5m x 10m/20m/30m       Mesh Ends Knotted

Standard Specification of TECCO System G65/3
Wire diameter:4mm
Hole Inscribed circle diameter: 65mm (+/- 5%)    Mesh Size: 83*143mm (+/- 5mm)
Roll Size: 3.5m x 10m/20m/30m       Mesh Ends Knotted

Anchors

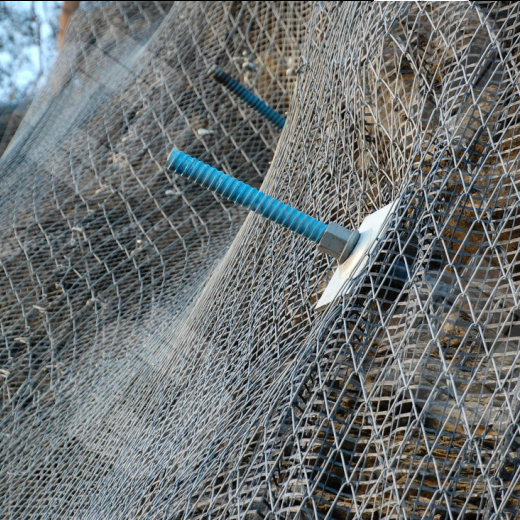

Deformed steel bar anchor diameter: 25mm or 28mm
Length:2m -5m

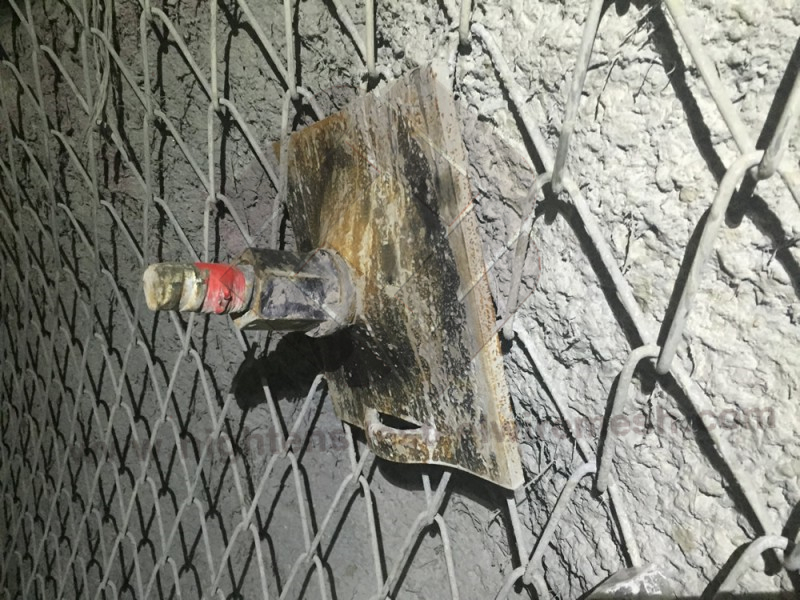

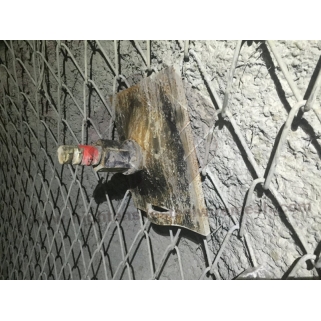

Anchor bearing plate: 320mm x 170/180mm

Rope
Border rope diameter: 12mm or 16mm
Seaming rope diameter: 8mm

Benefits
Compared with other active protection systems:
Only 60%-80% cost compare with the traditional wire rope system.
Fast and easy installation
