Slope Stabilization Mesh System is a kind of active rockfall barrier system, including steel wire mesh, wire rope anchor, spike plate, boundary rope, sewing rope and steel clips. With the wire ropes and steel clips, the steel wire mesh is fastened onto the mountain or slope surface tightly and firmly to block the large stones and reduce the damage of landslip or debris flow.

Slope Stabilization Mesh System Specification:

Material: High tensile steel wire.
Surface treatment: Hot dipped galvanized, zinc-aluminum coated.
Zinc thickness: No less than 150 g/m2.
Wire diameter: 3 mm, 4 mm, 2mm.
Mesh type: Rhomboid hole.
Mesh size : 65 mm inscribed circle diameter.
Tensile strength: Minimum 1770 MPa.
Braking load of single wire: 12.5 kN.
Mesh roll width: 1–3.5 m.
Mesh roll length:10–30 m.
3D GeoNet

Fitting : Steel anchor, claw type spike plate, soil or rock nails, clips, sewing rope, boundary rope. (The steel anchor is made of deformed steel bar of 25 mm diameter)

Slope Stabilization Mesh System Application :

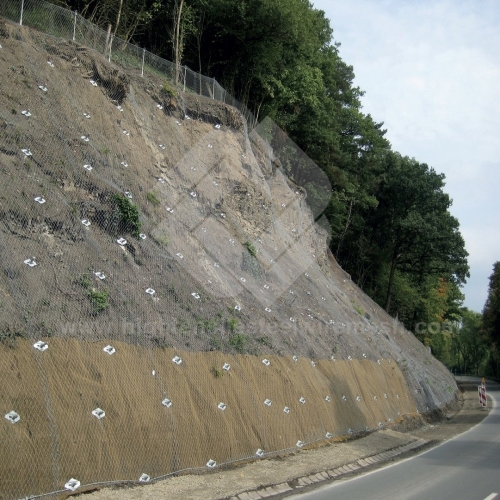

The steel wire mesh is usually installed on soil or rocky textured surfaces such as mountains and slopes to prevent falling rocks and to ensure plant growth. In addition, it can be used to control water, soil loss and external soil spray sowing.
