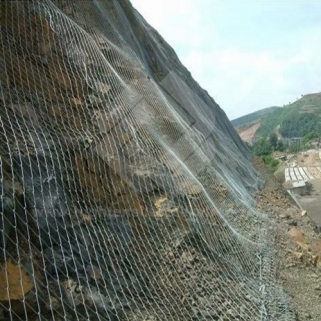

Initiative protective systems wire mesh (also called TECCO) is manufactured from a 3mm 4mm or 2mm high-tensile steel wire with a tensile strength of 1,770N/mm². Together with a pattern of bolting or anchoring, it stabilises steep, unconsolidated rock and rock slopes. Main Components: High-tensile steel wire,Steel bar anchor or bolting, Claw type special anchor plate, Edge rope, oversewed rope or special lock.

Components

The TECCO system consists of four main components that are carefully coordinated with each other:

1). TECCO steel wire mesh TECCO mesh is made of high-tensile steel wire with an ultimate tensile strength of 1770 N/mm2.

2). TECCO spike plates Rigid spike plates that are reinforced with ribbing ensure optimal load transmission from soil or rock anchors to the TECCO mesh.These plates are placed over the anchor heads and tightened to pre-tension the mesh onto the slope.The plates are galvanized and have dimensions of 13.0''*7.5"*0.4"(330mm*190mm*10mm).

3). TECCO connection clips The connection clips high-strength steel wire connection clips enable mesh sections to be joined without overlapping and still guarantee one hundred percent transfer of forces.These claw are hot dip galvanized and consist of 0.25"(6mm) thick steel spiral. Application Area: Soil, strongly weathered slope reinforcement, river bank erosion control, soil and water loss control, Slope greening, etc.
