High Tensile Steel Wire Mesh G65/3 G65/4 G80/4 G80/3 G45/2

High Tensile Steel Wire Mesh has high tensile strength to bear the attacks.

High Tensile Strength Steel Wire Mesh is the mainly part of  the Active Slope Protection Mesh, which is made of high tensile strength steel wire or stainless steel

wire, with wire tensile strength 1770Mpa, 1370Mpa or 990Mpa and the mesh types of the high tensile strengthsteel mesh arein the shape of Rhomboid Hole and

Square Hole, the normally specifications including G65/3 G65/4 G80/4 G80/3 G45/2 inscribed circle diameter 65mm, 80mm, 45mm, 40mm, 60mm, 55mm etc.

High Tensile Steel Wire Mesh has better harness and tensile strength to bear the big attack of landslide, rockfall, avalanche and debris flow. The High tensile steel

wire mesh is mainly used to secure loose, blocky rocks, rock spurs and unstable rock formations. And the high tensile steel wire mesh has good adaptability,

which can be used on any surface even on the highly irregular surface structures.

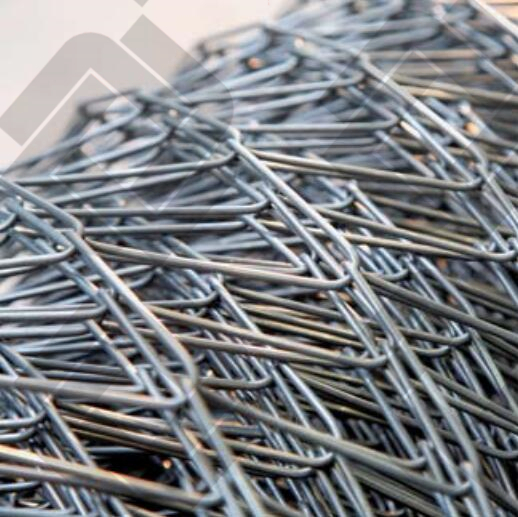

High Tensile Steel Wire Mesh

-Wire Materials:

1.) Zinc 95% Aluminum 5%-10% Alloy Steel Wire (Zinc Coating ≥150gr/m2), Wire Resistance ≥1770Mpa, Mesh Ending Knotted ( ≥1.5laps )

2.) Stainless Steel 304 Wire, Wire Resistance ≥1770Mpa, Mesh Ending Knotted ( ≥1.5laps )

3.) Heavily Zinc Coating Steel Wire （Zinc Coating ≥200gr/m2）, Wire Resistance ≥1370Mpa, Mesh Ending Knotted (≥1.5 laps )

4.) Heavily Zinc Coating Steel Wire （Zinc Coating ≥200gr/m2）, Wire Resistance ≥900Mpa, Mesh Ending Knotted ( ≥1.5 laps )

Other wire mateials are also available.

-Specifications：

 Wire Diameter: 3.00mm, 4.0mm, 2.0mm, 2.2mm，4.4mm etc

 Mesh Sizes:  83*143mm, 102*177mm, 62*95mm, 65*65mm, 60*60mm, 55*55mm, 50*50mm etc

 Mesh Types:  Rhomboid Hole or Square Hole.

 Mesh Height: 10mm, 30mm, etc

 Mesh Ending: Knotted Edge, Knuckle Edge, Twist Edge, Ferrule Edge etc.

 Roll Width: 3.5m, 2.9m, 2.5m, 1.0m etc

 Roll Length: 10m, 20m, 30m etc
