Product Name:
High Resistance SteelGrid
Model No.:
HRS-21

Product Abstract:

The High Resistance SteelGrid system is installed in the same general way as conventional double twist mesh. It is easy to handle and will not require extensive modification of existing method statements and installation techniques. The inclusion of the steel ropes greatly enhances the transfer of loads from the mesh into the anchorage system thereby increasing the safety, capacity and durability of the mesh as a complete system.

Product Description

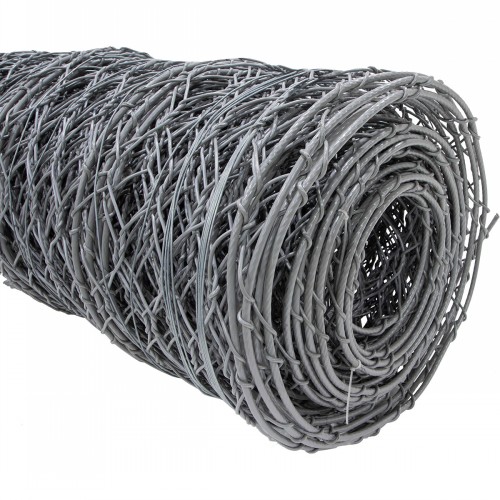

High Resistance SteelGrid

Specifications Of High Resistance SteelGrid

Properties
No	Properties	Standard/Code	Unit	Specification
MESH WIRE PROPERTIES
1	Mesh Opening	EN 10223-3	mm	80
2	Mesh Type	EN 10223-3	cm x cm	8x10
3	Roll Width	Standard width	m	2.7
4	Roll Length	Specific Requirement	m	25
5	Spacing of longitudinal Wire Rope	-	cm	32 (±2)
MESH WIRE PROPERTIES
1	Wire Diameter	EN 10223-3	mm	2.7 (±0.05)
2	Tensile Strength of Wire	EN 10223-3	N/mm2	350-550
3	Elongation	EN 10223-3	%	≥10
4	Zn 90%-Al 10% Coating	EN 10244 -2, class A	G/m2	≥245
5	Zinc Coating Adhesion	EN 10244	-	No flaking of the zinc coating
WIRE ROPE 8MM
1	Construction of Wire Rope	EN 12358-4	-	6x7 -WSC
2	Diameter of Wire Rope	EN 12358-4	mm	8.0
3	Rope Grade	EN 12358-4	-	1770N/mm2
4	Breaking Load of Wire Rope	EN 12358-4	kn	≥41
5	Mass of Zn 95%-Al 5% Coating	EN 10264-2, class A	-	≥150
