Hexagonal Steelgrid

Product Name:
Hexagonal Steelgrid
Model No.:
HX317

Product Abstract:

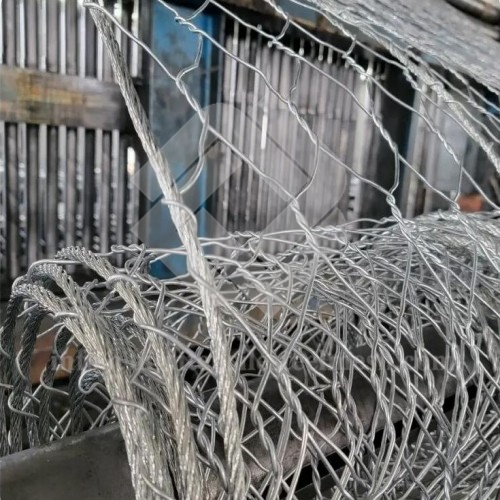

The Hexagonal SteelGrid system is a double twist mesh. It's made of Zn/Al alloy coated steel wire and wire ropes 8.0mm, It is easy to handle and will not require extensive modification of existing method statements and installation techniques. The inclusion of the steel ropes greatly enhances the transfer of loads from the mesh into the anchorage system thereby increasing the safety, capacity and durability of the mesh as a complete system.

Product Description

Hexagonal SteelGrid

Specifications Of Hexagonal SteelGrid

Properties
No	Properties	Standard/Code	Unit	Specification
MESH WIRE PROPERTIES
1	Mesh Opening	EN 10223-3	mm	80
2	Mesh Type	EN 10223-3	cm x cm	8x10
3	Roll Width	Standard width	m	2.7
4	Roll Length	Specific Requirement	m	25
5	Spacing of longitudinal Wire Rope	-	cm	32 (±2)
MESH WIRE PROPERTIES
1	Wire Diameter	EN 10223-3	mm	2.7 (±0.05)
2	Tensile Strength of Wire	EN 10223-3	N/mm2	350-550
3	Elongation	EN 10223-3	%	≥10
4	Zn 90%-Al 10% Coating	EN 10244 -2, class A	G/m2	≥245
5	Zinc Coating Adhesion	EN 10244	-	No flaking of the zinc coating
WIRE ROPE 8MM
1	Construction of Wire Rope	EN 12358-4	-	6x7 -WSC
2	Diameter of Wire Rope	EN 12358-4	mm	8.0
3	Rope Grade	EN 12358-4	-	1770N/mm2
4	Breaking Load of Wire Rope	EN 12358-4	kn	≥41
5	Mass of Zn 95%-Al 5% Coating	EN 10264-2, class A	-	≥150
