Anchored Wire Mesh

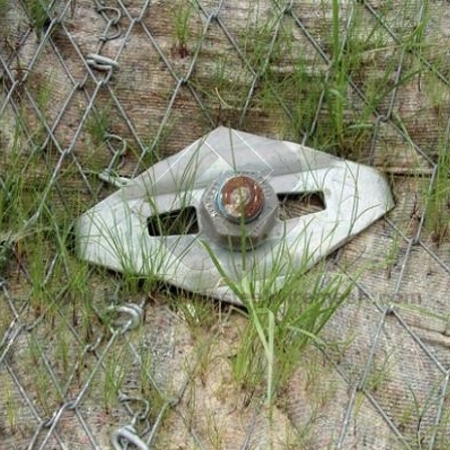

Anchored Wire Mesh is made of High tensile strength steel wire 3.0mm 4.0mm or 2.0mm or Stainless steel wire 3.0mm 4.0mm or 2.0mm,  the wire tensile strength ≥1,770N/mm2, Zn-Al Coated, knotted ends ≥1.5 laps, normally the specifications of the Anchored Wire Mesh are including G65/3 G65/4 G80/4 G80/3 G80/2 G45/2 G40/2, by using the anchors, boundary ropes and special tecco clips T3/T2, the Anchored Wire Mesh can covers over the slope tension and firmly. The Tecco erosion blanket is firmly fixed to slopes and features a finer mesh to ensure that small rocks can be held in place in addition to large boulders. All these designs enable the tensile strength of 1m with of mesh no less than 150kN/m, which can supply maximum protection to the slopes and peoples.

Specifications of Anchored Wire Mesh

  * Wire diameter: 3mm, 4mm or 2mm. ( High Tensile Steel Wire Mesh Or Stainless Steel Wire Mesh )

  * Mesh type: Rhomboid hole, G65/3, G65/4, G80/4, G80/3, G80/2, G45/2, G40/2 etc. (It also can be square hole)

  * Mesh size: Inscribed circle diameter is 65 mm, 80mm, 45mm, 40mm, 60mm, 55mm, 70mm, 75mm etc.

  * Tensile strength: minimum 1770 MPa. (It's also available with 900Mpa, 1370Mpa etc.)

  * Corrosion treatment: zinc-aluminum coated (Zinc coating ≥150g/m2.  or heavily zinc coated (Zinc coating ≥200g/m2.）

  * Zinc thickness: no less than 150 g/m².

  * Breaking load of single wire: 12.5 kN.

  * Roll width: 1 m- 2.9m- 3.5 m- 3.9m.

  * Roll length: 10 m- 20m- 30m.

  * Mesh Edges Tightly Knotted.
